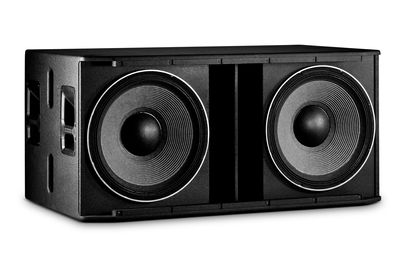

18" Dual Self-Powered Subwoofer System



Features
Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
JBL Premium Transducers
Drivecore Amplification By Crown
Full User Configurable DSP
Network Control
JBL Engineered Application Presets
LCD Screen and Glow in the Dark Ink on Back Panel
Accepts JBL WK-4S Caster Kit
145 lb/65.9 kg
Unprecedented Control
A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Applications
Live performance systems.
Mobile and fixed DJ systems.
Sound system rental and tour.
Permanent installations.

Specifications
System Type Self powered dual 18”, subwoofer system
Maximum SPL (1m) 141 dB
Frequency Range (-10dB) 29 Hz - 150 Hz
Frequency Response (-3 dB) 35 Hz - 120 Hz
Amplifier Design Class D
Power Rating 2000 W Peak
Dimensions (H x W x D) 681mm x 1205mm x 574mm (26.79in x 47.42in x 22.57in)
Net Weight (each) 65.9 kg (145 lb)
EQ 20 parametric EQ's, speaker delay, and 50 available slots for presets
Inputs Neutrik ¼ - XLR input; Neutrik XLR Output
Outputs 2 x XLR
Enclosure 18 mm Duraflex coated plywood
LF Driver 2 x 18 in Differential Drive®
System Processing DSP based, resident in Input Module
